Presentation workbench

The presentation workbench is an S1API-owned, in-game developer tool for tuning visual position, rotation, scale, and native icon framing without rebuilding a mod after every value change. It is not a mod-facing API and mods do not register workbench definitions.

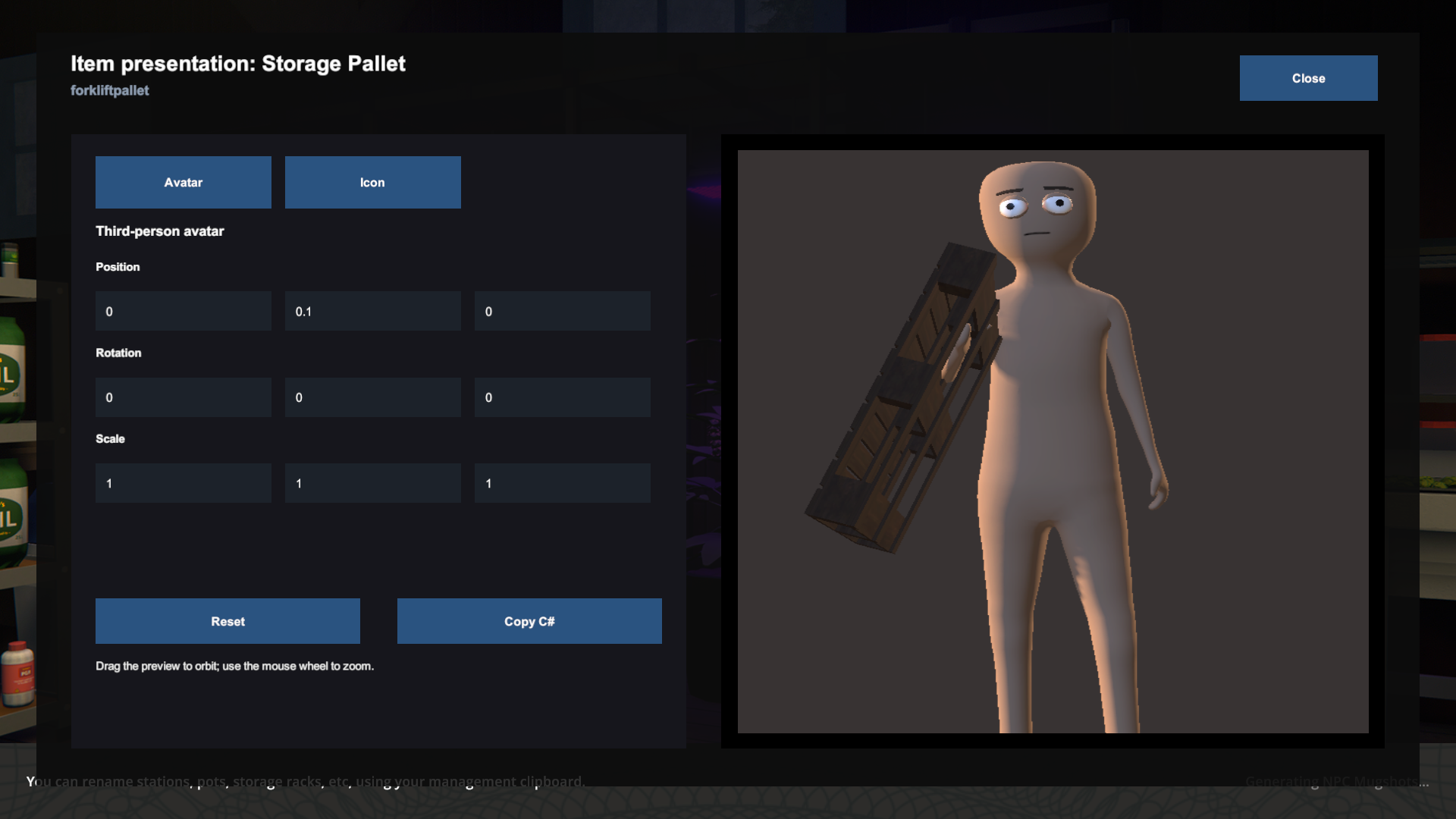

The presentation workbench showing a storage pallet on the detached avatar preview

Instead, the tool discovers content that is already registered through S1API or the game:

Product targets read existing ProductPresentationProfile registrations.
Item targets read the registered item definition, its equippable visual, and its linked avatar-equippable resource.

The workbench provides three context-accurate previews when the discovered target supports them:

First person clones the visual into the local player's real viewmodel container and assigns the Viewmodel layer.
Avatar clones the native mugshot avatar into an isolated stage, aligns the item's linked equippable with the same alignment-point math used by the game, and renders it through a dedicated preview camera.
Icon captures the visual through the base game's native IconGenerator rig. Position is intentionally omitted because IconFactory centers the renderer bounds before capture.

The workbench never equips an inventory slot, mutates a registered definition, persists values, or sends an RPC. Closing it or unloading the scene destroys all preview objects and restores movement, inventory, cursor, camera, and previously visible equippable state.

Open a registered target

Open the native developer console after the local player has spawned. The explicit forms are:

presentationworkbench product example.mod:products/focus-tablet
presentationworkbench item example.mod:items/storage-pallet
presentationworkbench close

For convenience, omit the target kind to resolve a value in product, then item order:

presentationworkbench example.mod:products/focus-tablet

A consuming mod does not need initialization code for the workbench. If the target is unavailable, wait for the mod to finish its normal content registration, then run the command again.

Edit and copy values

Select a supported context, enter numeric values, and commit each field with Enter or by moving focus. The workbench debounces icon changes before it captures the native rig again. Fit enables bounds-based automatic scale fitting; cameraFill controls how much of the native camera's vertical view the fitted model occupies. Values greater than 1 intentionally crop the model. In the avatar preview, drag with the left mouse button to orbit and use the mouse wheel to zoom. Reset restores both the authored transform and camera.

Use Copy C# to copy an invariant-culture fragment for an existing API:

product poses copy a ProductPresentationTransform;
item avatar previews copy local transform assignments for the visible prefab root selected by the tool;
icons copy IconFactory.GenerateIconSprite(...) setup and arguments.

The tool does not write source files or change the registered content.

Product presentation profiles

Profiles registered through ProductPresentationProfileRegistry automatically provide the held first-person preview, avatar-held preview, and generated loose-icon preview that they support.

Use a separate avatar pose when a shared source needs different first- and third-person placement:

ProductPresentationProfile profile =
    new ProductPresentationProfileBuilder()
        .WithHeldVisual(() => visual, firstPersonPose)
        .WithAvatarHeldTransform(avatarPose)
        .WithGeneratedIconFromLooseVisual(
            size: 512,
            fitToCamera: true,
            cameraFill: 0.8f)
        .Build();

Use WithAvatarHeldVisual(provider, avatarPose) when the avatar also needs a different source. Omitting both avatar-specific methods keeps the existing held visual and pose behavior.

Item discovery

An item target uses the enabled renderer hierarchy under the registered equippable as its editable visual root. If the equippable references an AvatarEquippable, the linked registered prefab supplies the avatar tab and its configured hand.

The item icon tab uses that same visible equippable hierarchy as a practical icon source. Product profiles retain their exact loose-icon source and framing settings. The workbench cannot reconstruct a transient custom icon source from the final sprite after a mod destroys that source. Use the closest registered product or item visual as the starting point, then paste the copied IconFactory values into the icon-generation code.

Runtime requirements and limits

The workbench requires a spawned local player and the render-ready services in the Main or Tutorial scene. It is a local authoring aid, not a multiplayer content transfer or runtime customization protocol.
